PACKAGINGS – EVERYTHING FROM ONE SOURCE

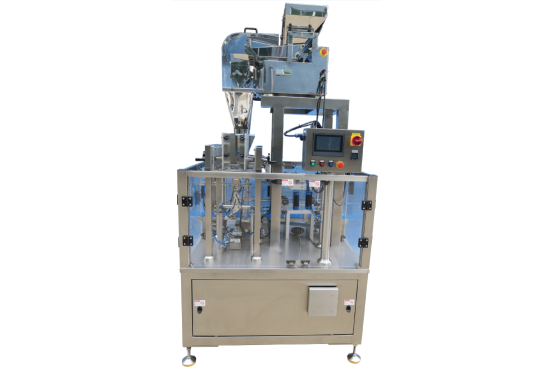

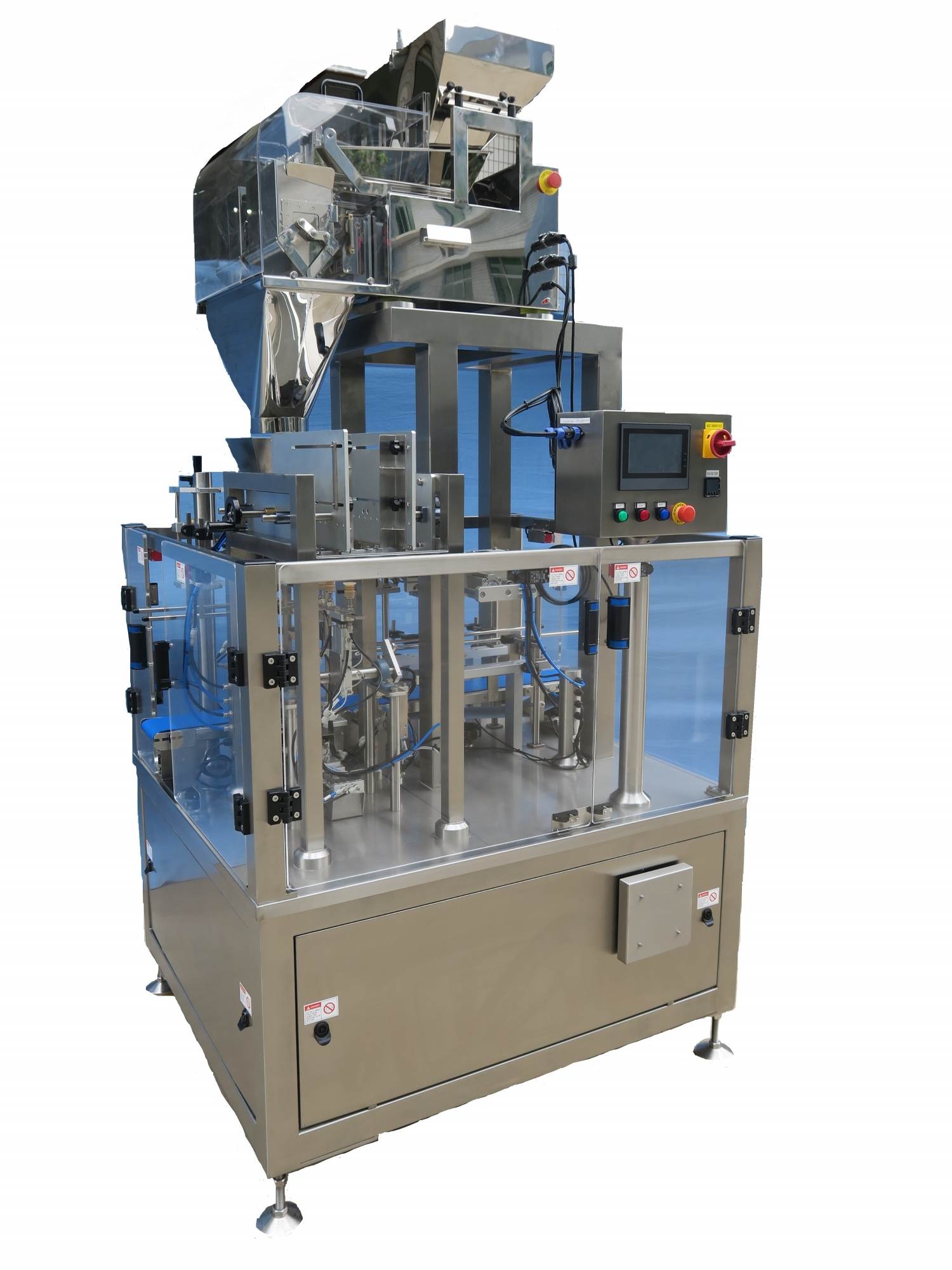

Coffee and Sweets Filling and Capping Machine DPM-2BT
FAST FILLING OF COFFEE AND SWEETS INTO DOYPACK STAND-UP POUCHES

Our filling and capping machine for coffee and sweets fills and seals prefabricated stand-up pouches (Doypack, Pouchbag) with cycle times up to 15 stand-up pouches per minute. Our pouch capping machines can be extended modularly with linear or multihead weighers. The compact design is very space-saving and can be adjusted flexibly to different bag widths. The filling and capping machines of the DPM-2BT series are the cost-effective entry-level alternative to complex linear filling machines or rotary machines. The stand-up pouches are conveyed directly via  pouch magazine and are then filled and sealed in the machine.

Technical Details:

  • Stations in linear design
  • Integrated vertical bag feeding magazine
  • Built-in vacuum pump for picking up and opening the bag
  • Built-in vibration holding device
  • No bags, no packaging function
  • Panasonic PLC + Kinco 7" colour screen
  • Stainless steel construction
  • Locked safety door protection
  • Modular design, easy-to-integrate differential filling device and other options

DPM-2BT has been specially developed for the use in pouches with side gussets. It is therefore suitable for the following bags: coffee bean bags, square bottom bags with clear gusset, square bottom gusseted bags, film gusseted bags, plantation gusseted bags, film gusseted bags with square bottom and zip closure, quad seal gusseted bags, Paisley gusseted bags, poly gusseted bags.

Today, the market and especially the pet food, cosmetic (shower gel, soaps) and food sector (cereals, dried fruits) depend on stand-up pouches.

Our technical sales team is at your disposal for any further information regarding our Nero-Pack filling and capping machines.

DPM-2BT in application: Packaging of coffee beans

Different Models:

  • DPM-2BT
    ModelDPM-2BT
    Bag width:100 - 200 mm*
    Bag length:180 - 400 mm*
    Output quantity:8 to15 bags/min (depending on product type)**

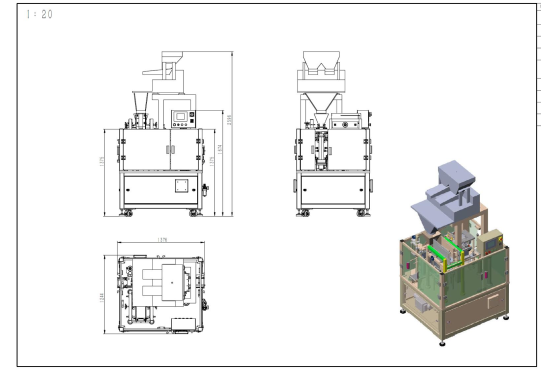

    Machine size (L x W x H):1244 mm x 1376 mm x 2596 mm

Practical Usage Possibilities at a glance:

  • Coffee
  • Tea
  • Sweets

Optional Accessories:

Filling Devices

  • Volumetric Cup Filling Device
  • Multi-Head Combination Weigher

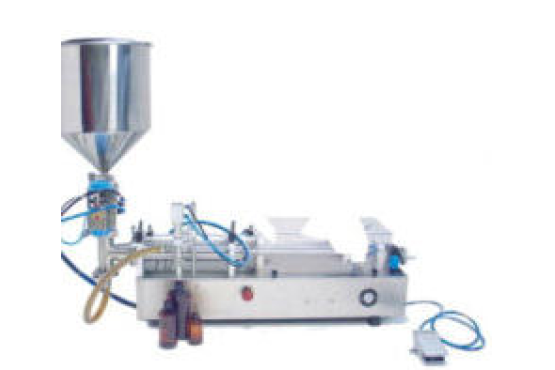

  • Hibar Pump Filler
  • Piston Filling Device


* It is not possible to combine all maximum dimensions

** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling

Convince yourself of our Filling and Capping Machines and make an appointment today with our showroom or with one of our reference customers at 0221/168 00 60-0 or at info_at_tbs-pack.de.
