PACKAGINGS – EVERYTHING FROM ONE SOURCE

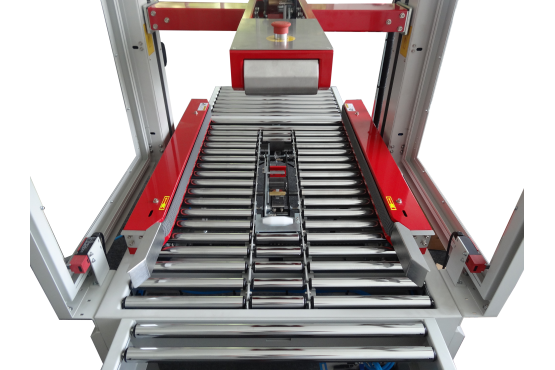

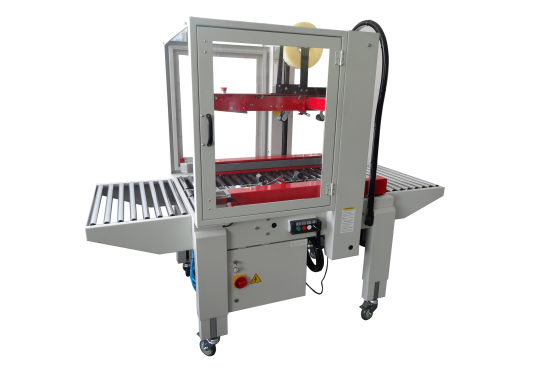

KPM-105SDR (All-Automatic Machine)

Case Sealing - easy and time-saving

Our semi-automatic case sealers from the KPM line are the ideal solution for professional case sealing.Depending on the machine type, the case sealer is driven laterally or from above and below. The case sealers can be adjusted individually to the respective case sizes. The shipping cases are closed by a machine adhesive tape which quickly and securely bonds the lower and upper flaps. The KPM line guarantees ergonomic work (no constant lifting of heavy cases), clean and straight adhesive seams and a low-noise unwinding of the adhesive tape.

Technical Details


  • maintenance-friendly, low spares costs
  • adjustable tape tension
  • 2 tape dispenser (above / below)
  • quick format changes via handwheel or photoelectric technology
  • including product infeed and outfeed conveyor belt
  • adhesive tapes (50 mm width / optional 75mm)
  • conveyor belt direction (right / left)
  • height-adjustable wheeled supporting feet
  • case erector (KPM-116) available on demand

KPM-105SDR: Technical Data

Model:KPM-105SDR
Usable tape:PP / PVC / Hotmelt
Maximum tape diameter:410 mm
Inner tape reel diameter:76 mm
Minimum case dimensions (Wx H):110 x 120 mm*
Maximum case dimensions (W x H):600 x 600 mm*
Machine size (L x W x H):1860 x 1030 x 1550 mm
Maximum case weight (approx.):40 kg
Arrangement of drive belts: lateral
Case format adaption: automatic
Transport speed:23 m / minute
Maximum reel height:880 mm
Supply voltage:230 V
Air pressure (dry air):6,0 bar
Connected load (maximum):0,40 kW
Machine weight (approx.):195 kg
Packing capacity:up to 20 pieces / minute**

* It is not possible to combine all maximum dimensions

** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling

Convince yourself of our Case Sealers and make an appointment today with our showroom or with one of our reference customers at 0221/168 00 60-0 or at info_at_tbs-pack.de.
