Semi-Automatic Case Sealers
Premium-Line

Our semi-automatic case sealers from the Nero-Pack line are the ideal solution for professional case sealing.Depending on the machine type, the case sealer is driven laterally or from above and below. The case sealers can be adjusted individually to the respective case sizes. The shipping cases are closed by a machine adhesive tape which quickly and securely bonds the lower and upper flaps. The KPM line guarantees ergonomic work (no constant lifting of heavy cases), clean and straight adhesive seams and a low-noise unwinding of the adhesive tape.

Requests
Data Sheet

Technical Details

  • maintenance-friendly, low spares costs
  • adjustable tape tension
  • 2 tape dispenser (above / below)
  • quick format changes via handwheel or photoelectric technology
  • including product infeed and outfeed conveyor belt
  • adhesive tapes (50 mm width / optional 75mm)
  • conveyor belt direction (right / left)
  • height-adjustable wheeled supporting feet
  • case erector (KPM-116) available on demand

KPM-103SDH: Product Video

KPM-103TB: Product Video

Different Models:

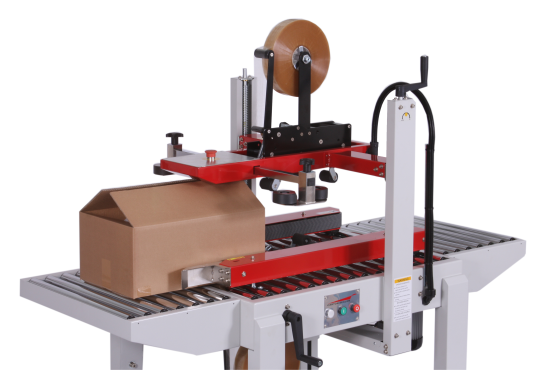

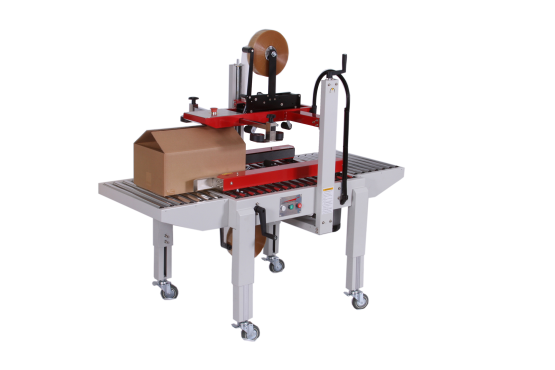

  • KPM-103SD

    Model:KPM-103SD
    Usable tape:PP / PVC / Hotmelt
    Inner tape reel diameter: 76 mm
    Minimum case dimensions: (W x H):100 x 120 mm*
    Maximum case dimensions: (W x H):500 x 500 mm*
    Machine size (L x W x H):913 x 854 x 1180 mm
    Maximum case weight (approx.):40 kg
    Arrangement of the drive belts:lateral
    Case format adaption: manual
    Transport speed:23 m / minute
    Maximum reel height: 820 mm
    Supply voltage:230 V
    Air pressure (dry air):-
    Connected load (maximum):0,40 kW
    Machine weight (approx.):108 kg
    Packing capacity:up to 30 pieces / minute**

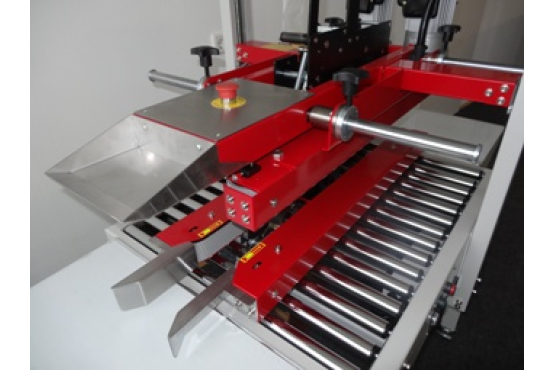

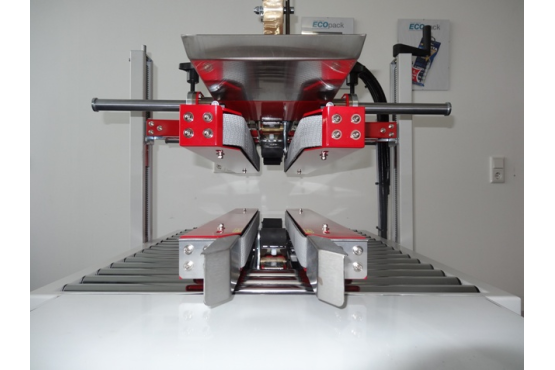

  • KPM-103SDH

    Model:KPM-103SDH
    Usable tape:PP / PVC / Hotmelt
    Inner tape reel diameter:76 mm
    Minimum case dimensions (W x H):90 x 120 mm*
    Maximum case dimensions (W x H):500 x 500 mm*
    Machine size (L x W x H):913 x 854 x 1180 mm
    Maximum case weight (approx.): 40 kg
    Arrangement of the drive belts: lateral, below and above
    Case format adaption:manual
    Transport speed:23 m / minute
    Maximum reel height:820 mm
    Supply voltage:230 V
    Air pressure (dry air):-
    Connected load (maximum):0,45 kW
    Machine weight (approx.): 108 kg
    Packing capacity:up to 30 pieces / minute**

  • KPM-103TB

    Model:KPM-103TB
    Maximum tape diameter:410 mm
    Inner tape reel diameter:76 mm
    Minimum case dimensions (W x H):140 x 120 mm*
    Maximum case dimensions (W x H):500 x 500 mm*
    Machine size (L x W x H):837 x 754 x 1375 mm
    Maximum case weight (approx.):40 kg
    Arrangement of the drive belts: at the top and at the bottom
    Case format adaption:manual:
    Transport speed:23 m / minute
    Maximum reel height:800 mm
    Supply voltage:230 V
    Air pressure (dry air):-
    Connected load (maximum):0,40 kW
    Machine weight (approx.):115 kg
    Packing capacity:up to 30 pieces / minute**

* It is not possible to combine all maximum dimensions

** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling

Convince yourself of our Case Sealers and make an appointment today with our showroom or with one of our reference customers at +492235 - 47048 - 0 or at info_at_tbs-pack.de.
