PACKAGINGS – EVERYTHING FROM ONE SOURCE

Automatic L-Bar-Sealer (up to 40 cycles/min)

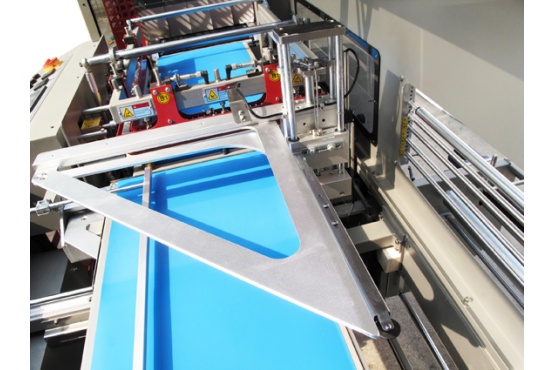

The tbs-pack automatic L-bar-sealer is the ideal entry-level solution for long-term and automatic packaging processes. This sensor-controlled packaging line of film sealing machines can be fed manually or all-automatically. The film sealing machine reliably guarantees stable side seams for all films. The film is separated by two permanently heated Teflon knifes (L-angle). During this process, the center folded film is sealed by adjustable heat isolation. The use of our vertical pillow bag machine enables the user to pack different product sizes depending on the respective sealing frame size. The fast conversion to other product sizes guarantees an efficient and cost-effective workflow. The shrinking process (shrink film packaging) is prepared optimally thanks to its integrated product centering unit (centered sealing seam of the products).


Technical Details

  • simple handling due to digital program selection (10 individually storable programs)

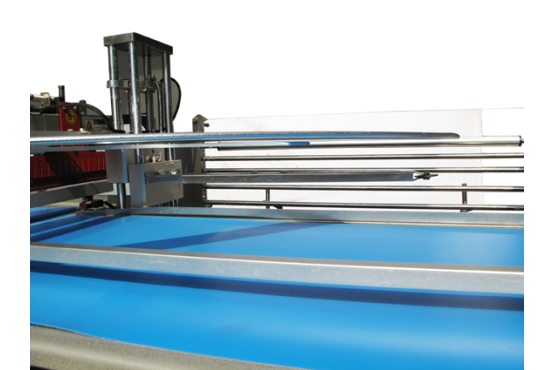

  • electrical height adjustment of the sealing stamp (product centering)
  • discrete sealing knife temperature control (lengthwise/crosswise)
  • possible bundling of one or more products
  • electronically adjustable conveyor belt speed
  • integrated batch counter
  • combinable with a shrink tunnel
  • protective cover (sensor-controlled)

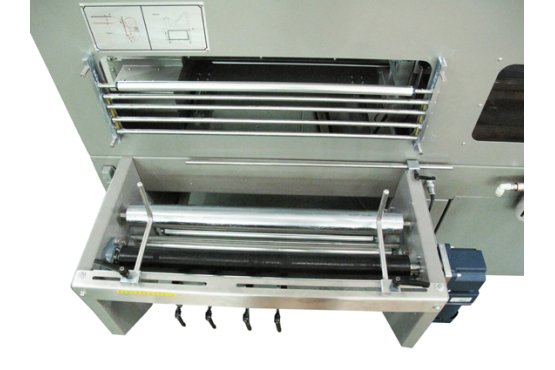

  • automatic winding of film waste


Additional Options:

  • film fold device
  • labelling-/ printing unit

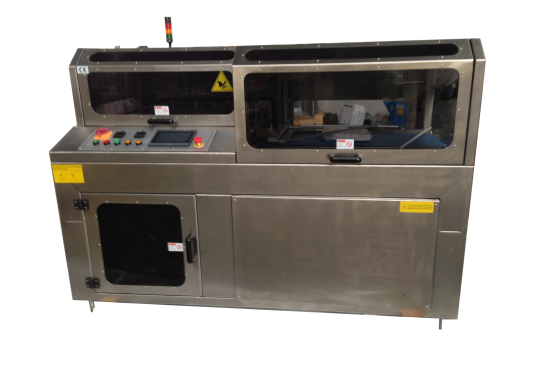

  • stainless steel construction
  • product supply unit / product pusher / kissing belt function

Automatic L-Bar Sealer: Product Video

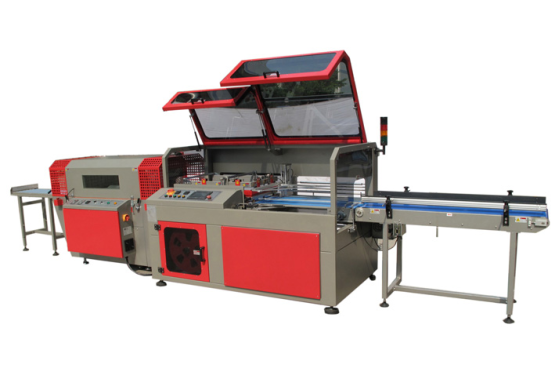

LWS-6148+STA-4530_Broccoli

LWS-6148+STA-4530_37 cyles per minute

Different Models:

  • LWS-4541
    ModelLWS-4541
    Functions:L-Bar-Sealer
    Usable films:POF / PP / PE
    Maximum film thickness:50my
    Sealing frame size:450 x 410 mm
    Sealing mechanism:L-Sealing Stamp*
    Maximum product dimensions:320 x 450 x 120 mm**
    Maximum reel sizes (L x Ø):480 x Ø 250 mm
    Machine size:1850 x 1480 x 1620 mm
    Conveyor belt speed:30 m/ minute
    Connected load (maximum):2,5 kW
    Supply voltage:230 V
    Machine weight (c):450 kg
    Air pressure (dry air):5,0 bar
    Sealing process:up to 40 pieces / minute***

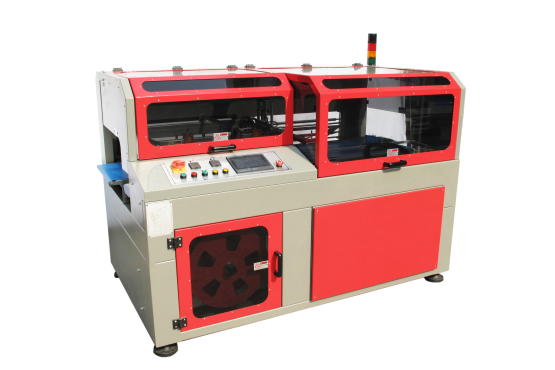

  • LWS-6148
    ModelLWS-6148
    Functions:L-Bar-Sealer
    Usable films:POF / PP / PE
    Maximum film thickness:50my
    Sealing frame size:610 x 480 mm
    Sealing mechanism:L-Sealing Stamp*
    Maximum product dimensions:480 x 610 x 200 mm**
    Maximum reel sizes (L x Ø):600x Ø 200mm
    Machine size:2040 x 1550 x 1620 mm
    Conveyor belt speed:30 m/ minute
    Connected load (maximum):3,0 kW
    Supply voltage:230 V
    Machine weight (approximately):610 kg
    Air pressure (dry air):5,0 bar
    Sealing process:up to 50 pieces / minute***
  • LWS-8667
    ModelLWS-8667
    Functions:L-Bar-Sealer
    Usable films:POF / PP / PE
    Maximum film thickness:50my
    Sealing frame size:860 x 670 mm
    Sealing mechanism:L-Sealing Stamp*
    Maximum product dimensions:670 x 860 x 250 mm**
    Maximum reel sizes (L x Ø):800x Ø 300mm
    Machine size:2580 x 1840 x 1620 mm
    Conveyor belt speed:30 m/ minute
    Connected load (maximum):3,4 kW
    Supply voltage:230 V
    Machine weight (approximately):750 kg
    Air pressure (dry air):6,0 bar
    Sealing process:up to 40 pieces / minute***

* L-Sealing Stamp: permanently heated L-shaped and Teflon-coated film sealing knife (facilitates thin and neat seams)

 ** It is not possible to combine all maximum dimensions

*** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling.
