Shrink Tunnel (STPE-Line)
The specialist for PE shrink films

With tbs-pack's STPE-line, challenging shrink packs can be flexibly produced with all shrink films (POF, PE). Our PE shrink tunnels are equipped, as standard, with heat-resistant transport rods and a cooling fan at the tunnel exit. Thanks to the continuously adjustable conveyor belt, the STPE-line is designed for high processing cycles with semi- or all-automatic film sealing machines. Modern thermal insulation and energy recovery lead to efficient energy conservation.


Requests
Data Sheet

Technical Details

  • continuous adjustment of temperature and conveyor belt speed
  • energy-saving solid-state-relais-control (SSR)

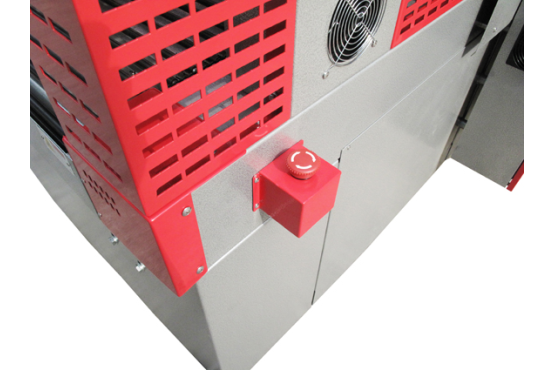

  • safety covers for the ongoing operation
  • integrated film cooling fan (standard)
  • separately adjustable heating chambers

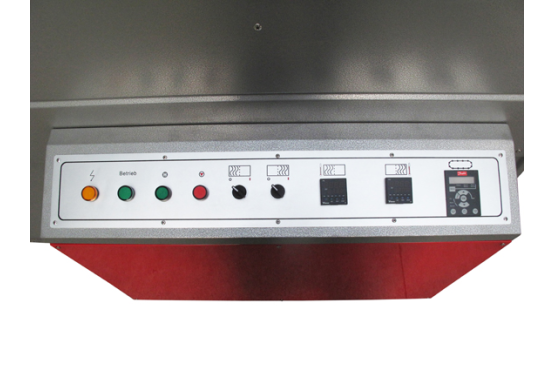

  • cabinet with integrated control panel
  • isolated infeed- and outfeed curtains for lower heat loss

Additional Options

  • pressure roller for light products
  • pressure brushes at the tunnel exit
  • Teflon conveyor belt as grid
  • stainless steel conveyor belt as grid
  • special measurements on request

STPE-100040H with BP-150040:Shrinking of boilers

STPE-100040H with WSG-100120: Shrinking of pneumatic parts

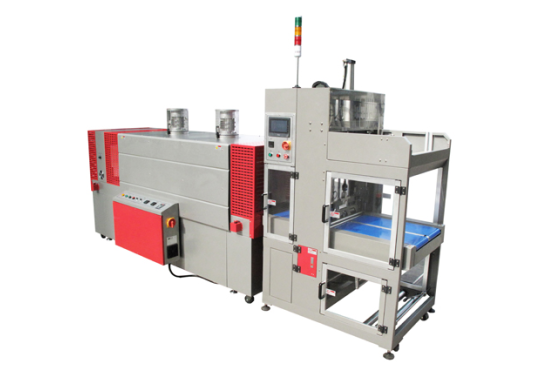

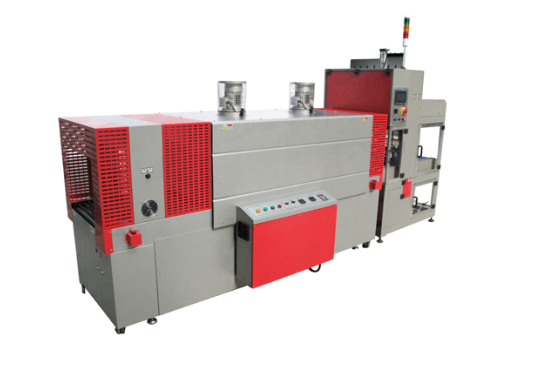

STPE-6040 with BP-6040D2: Shrinking of preserves

STPE-6040H with BP-6040: Shrinking of wooden plates

Different Models:

  • STPE-6040
    ModelSTPE-6040
    Tunnel bonnet (L x W x H):1200 x 600 x 400 mm
    Maximum product dimensions (W x H):550 x 380 mm
    Machine size (L x W x H):2800 x 970 x 1600 mm
    Conveyor belt speed:15m / minute
    Connected load (maximum):12,0 kW
    Supply voltage:400 V / 3-phases
    Machine weight (approx.):420 kg

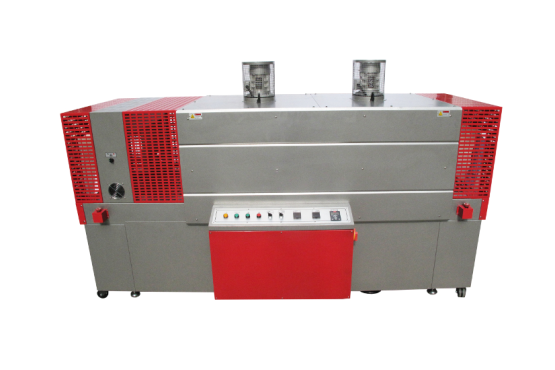

  • STPE-6040H
    ModelSTPE-6040H
    Tunnel bonnet (L x W x H):1200 x 600 x 400 mm
    Maximum product dimensions (W x H):550 x 380 mm
    Machine size (L x W x H):2800 x 970 x 1600 mm
    Conveyor belt speed:20m / minute
    Connected load (maximum):18,0 kW
    Supply voltage:400 V / 3-phases
    Machine weight (approx.):600 kg
  • STPE-8040
    ModelSTPE-8040
    Tunnel bonnet (L x W x H):1800 x 800 x 400 mm
    Maximum product dimensions (W x H):750 x 380 mm
    Machine size (L x W x H):2800 x 1170 x 1600 mm
    Conveyor belt speed:20m / minute
    Connected load (maximum)21,0 kW
    Supply voltage: 400 V / 3-phases
    Machine weight (approx.):850 kg
  • STPE-10040
    ModelSTPE-10040
    Tunnel bonnet (L x W x H):1800 x 1000 x 400 mm
    Maximum product dimensions (W x H):950 x 350 mm
    Machine size (L x W x H):2800 x 1370 x 1600 mm
    Conveyor belt speed:20m / minute
    Connected load (maximum):30,0 kW
    Supply voltage:400 V / 3-phases
    Machine weight (approx.):1000 kg
  • STPE-12540
    ModelSTPE-12540
    Tunnel bonnet (L x W x H):1800 x 1250 x 400 mm
    Maximum product dimensions (W x H):1250 x 350 mm
    Machine size (L x W x H):2800 x 1620 x 1600 mm
    Conveyor belt speed:20m / minute
    Connected load (maximum):30,0 kW
    Supply voltage:400 V / 3-phases
    Machine weight (approx.):1200 kg

* It is not possible to combine all maximum dimensions

** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling.

Convince yourself of our Shrink Tunnels and make an appointment today with our showroom or with one of our reference customers at +492235 - 47048 - 0 or at info_at_tbs-pack.de.
