Stretchrobots SWR-Line
The experts in wrapping - protecting and securing

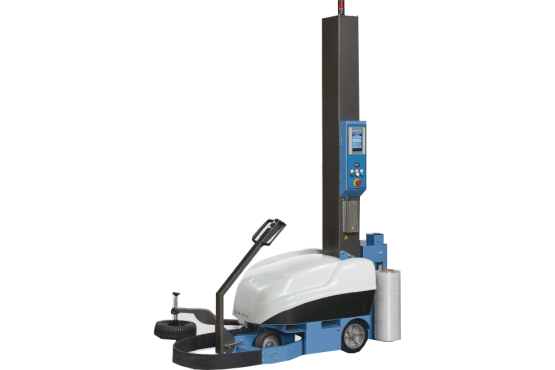

The self-propelled and network-independent pallet stretching machine is characterized by its compactness and usability. It possesses the innovative and patented characteristic of a controlled steering and convinces by its extremely compact design. As a result, a small space requirement around the pallet is demanded during stretching. While stretching, the Machine drives round the fixed pallet and wraps the pallet load. Also different pallet sizes are automatically processed. This enables a mobile use at different workplaces and the wrapping of over-sized pallets. When detecting obstacles in the way, the machine will stop automatically.


Technical Details

SWR-630:

  • automatic film cutting
  • adjustable number of upper and lower windings
  • adjustable winding tension

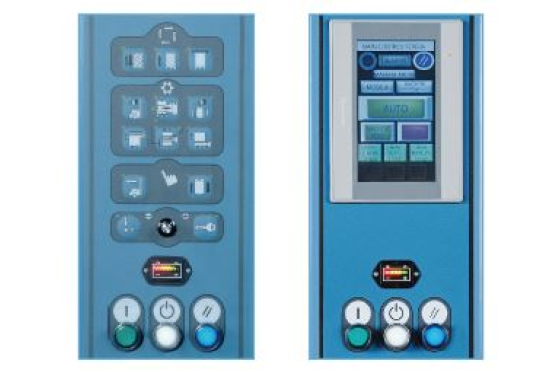

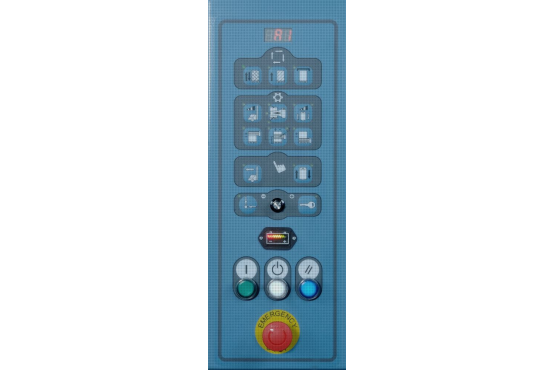

  • password-protected control panel
  • height detection by photosensor
  • slide guard

SWR-360-PLUS:

  • 7" colour touch screen with advanced wrapping function, suitable for all product packages
  • memory function for winding programs enables simple and efficient winding selection
  • high performance battery with over 300 pallets per load cycle
  • easy setting of the standard control panel with password

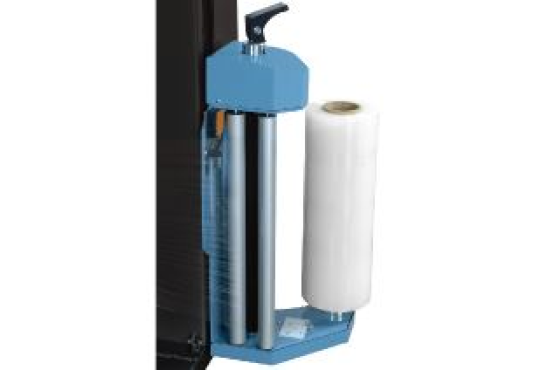

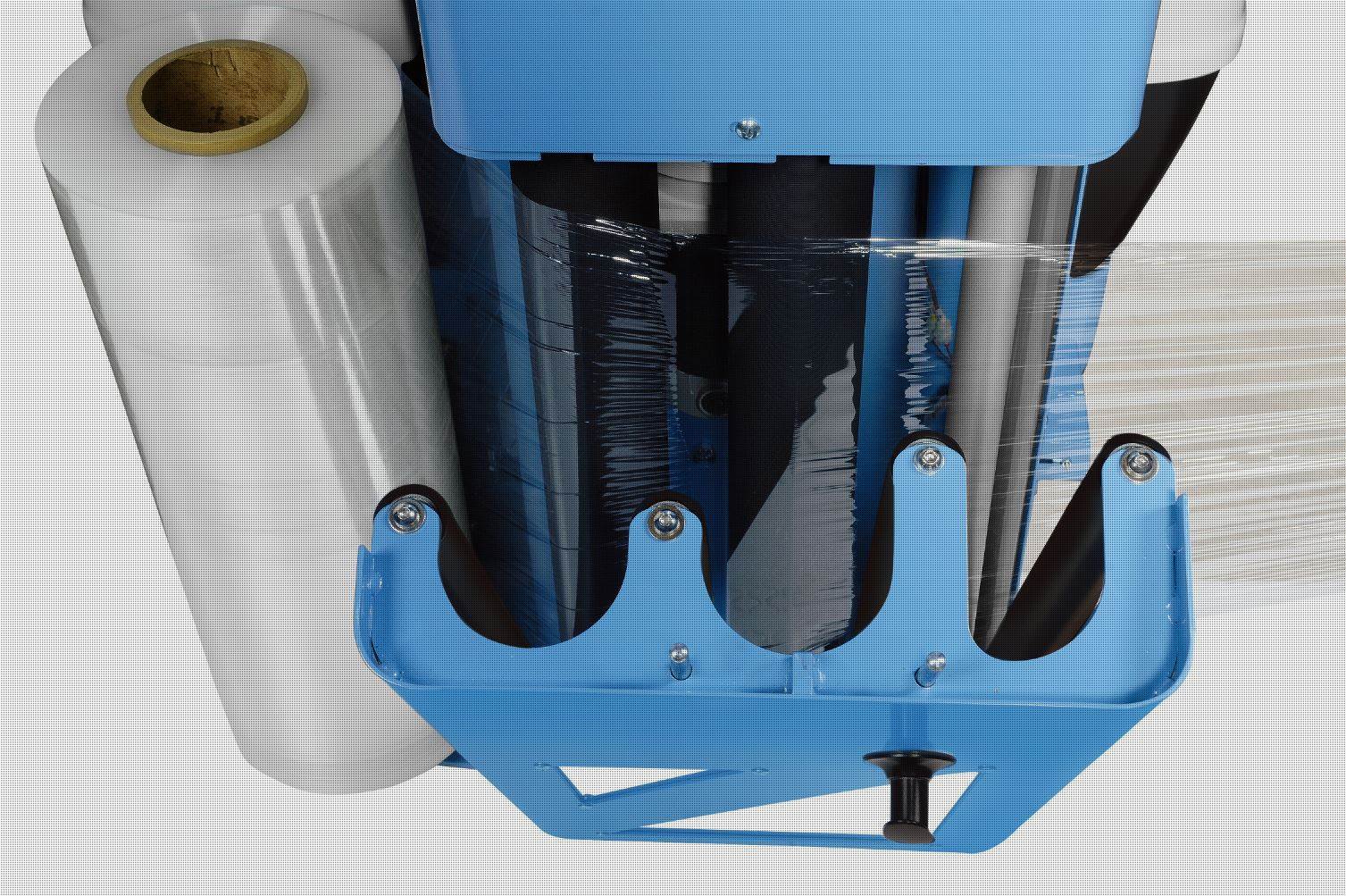

  • pre-stretching device with selectable degrees of elongation
  • adjustable film tension in the packaging process
  • highest safety standard with fall protection for transport


Technical Details:

  • fixed film pre-stretching of 80% and infinitely adjustable film tension
  • acoustical and optical warning signal during operation
  • pallet height automatically detected via photocell
  • adjustable lifting and lowering speed of the film carriage
  • selectable foot and head winding programs
  • spiral and cross spiral wrapping possible

Nero-Pack Stretchrobot: Product Video

Different Models:

  • SWR-630
    Model:SWR-630

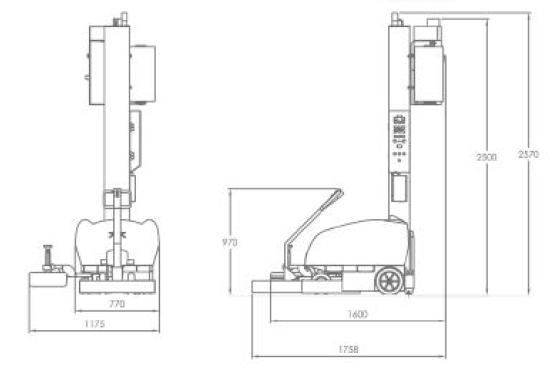

    Max. machine size (L x W x H):1.758 x 1.175 x 2.570 mm
    Electronic tension control:3-stage (top, middle, bottom)
    Pallet width:min. 600 mm - max. ∞ mm*
    Pallet length:min. 600 mm - max. ∞ mm*
    Max. pallet heigth:2.200-2.800 mm*
    Rotation speed:20-90 m/min
    Battery charger:110 - 240 V
    Pre-Stretch:200% & 250%

  • SWR-630 Plus
    Model:SWR-630 Plus
    Max. machine size (L x W x H):1.758 x 1.175 x 2.570 mm
    Electronic tension control:3-stage (top, middle, bottom)
    Pallet width:min. 600 mm - max. ∞ mm*
    Pallet length:min. 600 mm - max. ∞ mm*
    Max. pallet heigth:2.200-2.800 mm*
    Rotation speed:20-90 m/min
    Battery charger:110 - 240 V

  • SWR-1000
    Model:SWR-1000
    Machine size (L x W x H):1.066 x 738 x 1.560 mm
    Weight:approx. 195 kg
    Pallet width:min. 600 mm - max. ∞ mm*
    Pallet length:min. 600 mm - max. ∞ mm*
    Maximum pallet height:2.300 mm*
    Minimum pallet weight:80 kg
    Battery:230 V

  • SWR-2000
    Model:SWR-2000
    Machine size (L x W x H):1.066 x 738 x 2.280 mm
    Weight:approx. 195 kg
    Pallet width:min. 600 mm - max. ∞ mm*
    Pallet length:min. 600 mm - max. ∞ mm*
    Maximum pallet height:2.000 mm*
    Minimum pallet weight:80 kg
    Battery230 V

* It is not possible to combine all maximum dimensions.

Optional Accessories

  • touch screen control panel
  • photosensor for black or colored films
  • remote control
